5504 Compact Glovebox

M 5504 – Compact Temperature and Humidity Glovebox

Overview:

The M 5504 Series is ETS’ most compact standard temperature and humidity climate-controlled glovebox chamber but still provides space sufficient for many applications. The M 5504 climate-controlled glovebox is an enclosed chamber that provides a controlled environmental for handling sensitive materials. It is typically used in laboratories and industrial setting. Temperature and humidity climate-controlled gloveboxes are used in a variety of applications for lab testing or industrial processing across a host of applications in electronic, electrostatic, biomedical, pharmaceutical, and university research.

Functional needs for an application can vary from a basic chamber to a full-featured, precision temperature and humidity climate-controlled environment. The chamber is equipped with controls for temperature and humidity and allow the user to create the ideal environment for the materials being handled. Users can select from a wide range of ETS controllers and operating systems to meet their temperature and humidity performance criteria.  ETS systems are highly flexible and configurable to meet the specific requirements of an application.

Features:
  • Temperature (5ºC to 60ºC) and Humidity (5% to 95%) control
  • Compact footprint dimensions: 24″W x 18″D x 15″H

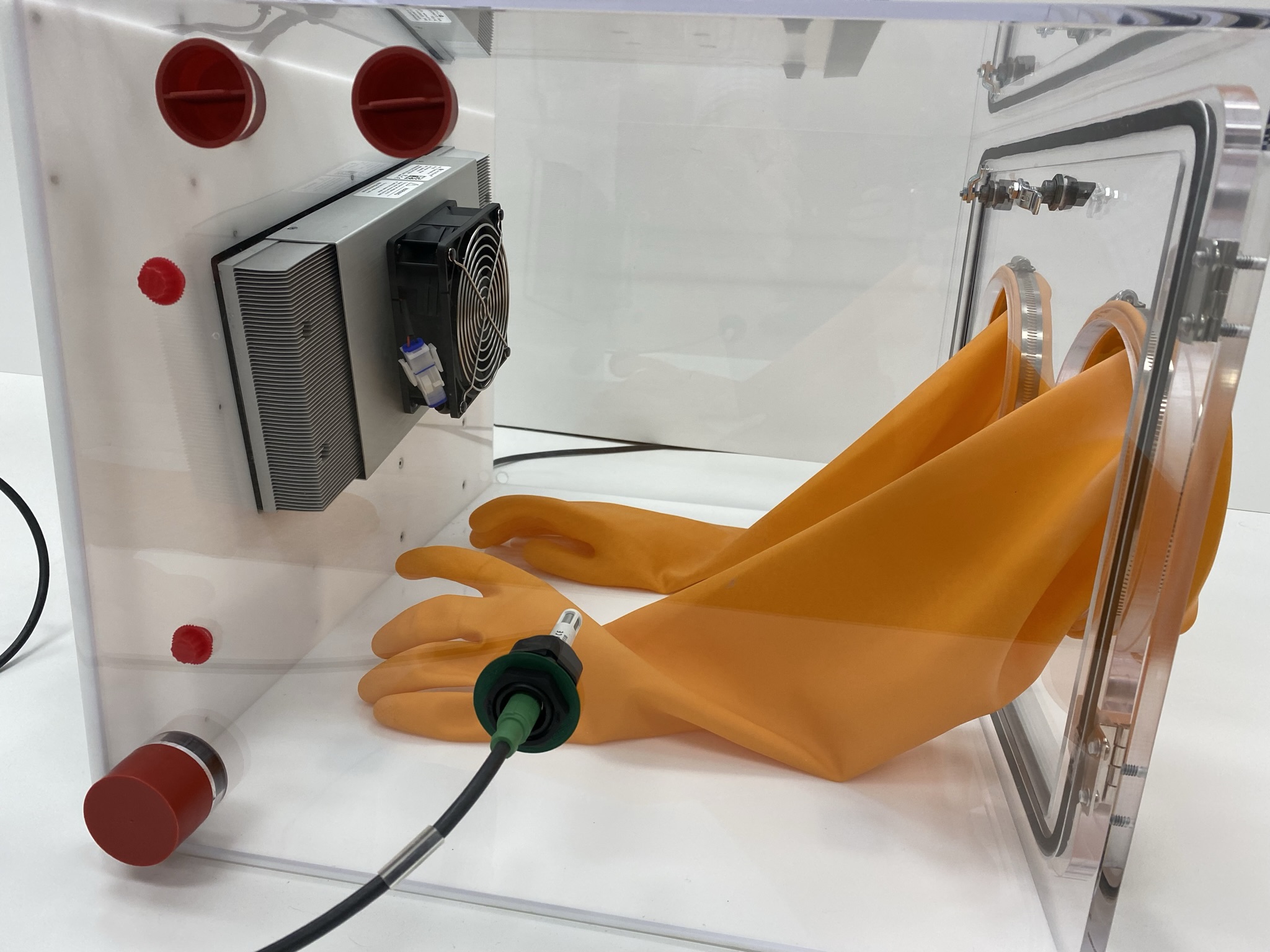

  • Interior work space:
    • 23.5″W x 17.25″D x 14.5″H maximum
    • 3.25 cubic fee (92 liters)
  • Large front door opening: 18″W x 12″H (46cm x 30cm)
  • ClearViewTM Acrylic for excellent interior visibility
  • CE marked for export to EU markets
Applications:
  • Pharma, Medical, Biomedical, and University Laboratory Testing and Research
  • R&D Product and Material Testing
  • Industrial Benchtop Work and Testing Environment
  • Industrial and Lab Sample Conditioning and Item Storage
Options:

Popular Climate Control Packages listed below.  Additional options available.

Product Details

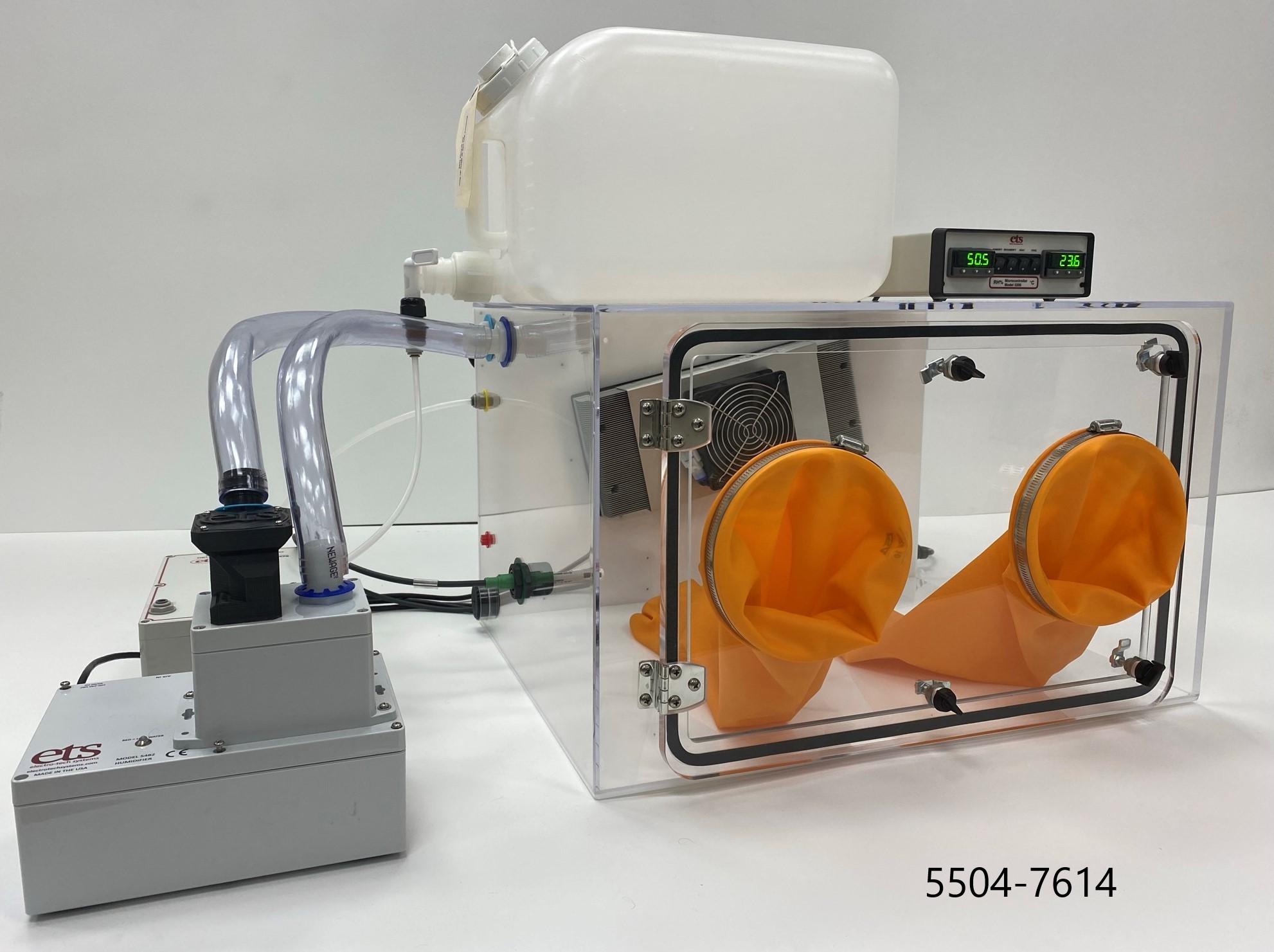

M 5504-7614 Glovebox Package, 115 Volt -
Temperature (10° to 55°C) and Humidity (Extra low 5% to 95% RH)

The M 5504-7614 Glovebox Package (115V) includes our best compact chamber with 6" glove ports and full temperature and humidity control with temperature range from 5° to 60°C and humidity range from 5% to 95+% RH.

  • Glovebox
    • 6" Glove Ports on Front Door
    • Standard one-piece gloves, Latex 24"
  • Controller, Temperature and Humidity
    • M 5200-240-230 - Humidity and Temperature Dual PID Controller
  • Humidity Range:  5% to 95+% RH
    • M 5482 - Humidification System
    • M 5478-115V - Dehumidification System (Self-Regenerating) - Requires air supply (50-100 psi)
    • Overpressure Monitor/System Cutoff (90000038)
  • Temperature Range:  5° to 60°C (40° to 140°F)
    • M 5476-250 - 250 Watt Thermoelectric Heating/Cooling System

Contact Us

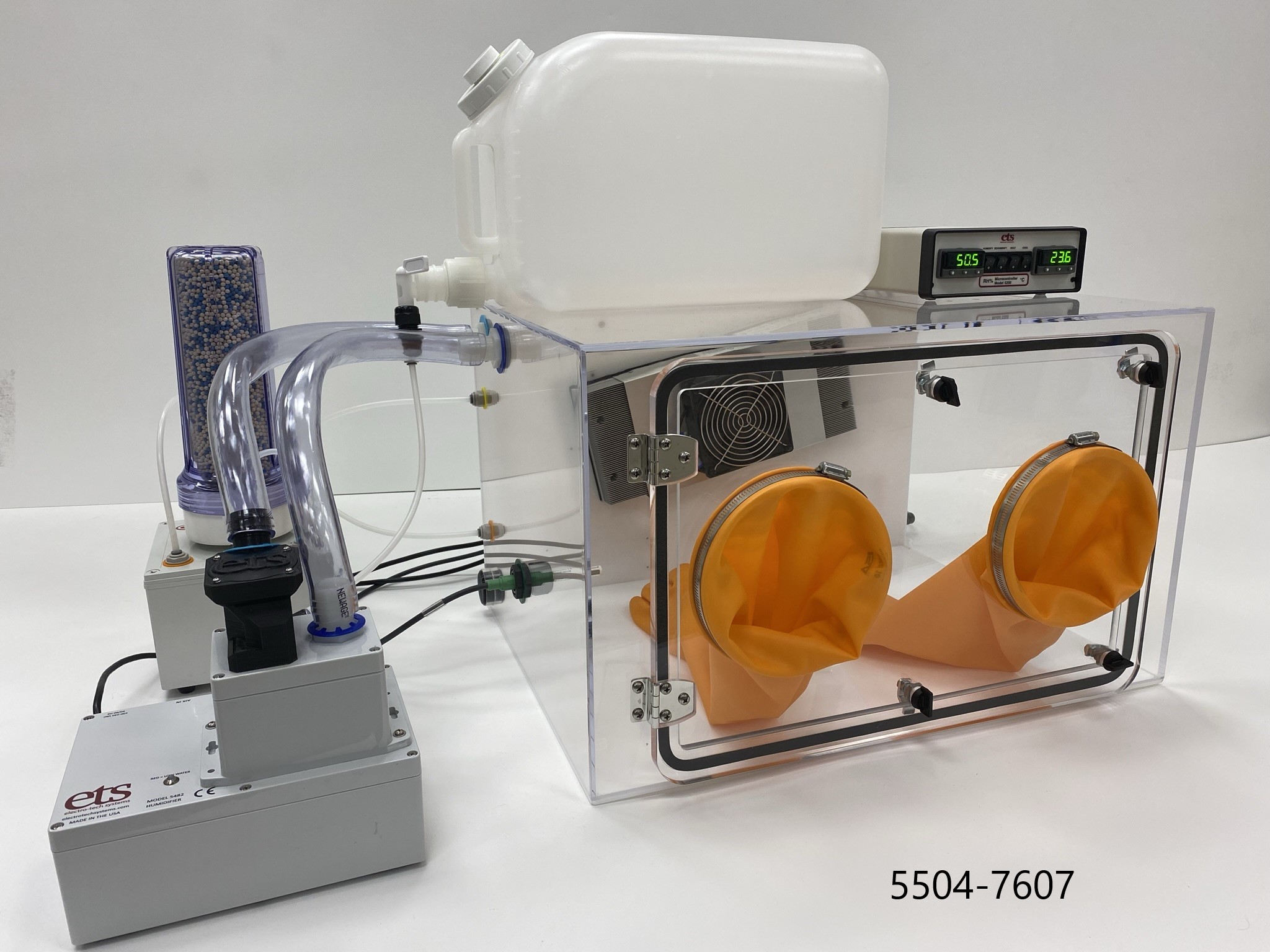

M 5504-7607 Glovebox Package, 115 Volt -
Temperature (5° to 60°C) and Humidity (10% to 95% RH)

The M 5504-7607 Glovebox Package (115V) includes our best compact chamber with 6" glove ports and full temperature and humidity control with temperate range from 5° to 60°C and humidity range from 10% to 95+% RH.

  • Glovebox
    • 6" Glove Ports on Front Door
    • Standard one-piece gloves, Latex 24", Size #10 hands
  • Controller, Temperature and Humidity
    • M 5200-240-230 - Humidity and Temperature Dual PID Controller
  • Humidity Range:  10% to 95+% RH
    • M 5482 - Humidification System
    • M 5461-115V - Desiccant/Pump Dehumidification System
  • Temperature Range:  50° to 130°F (10° to 55°C)
    • M 5475-200 - 200 Watt Thermoelectric Heating/Cooling System

Contact Us

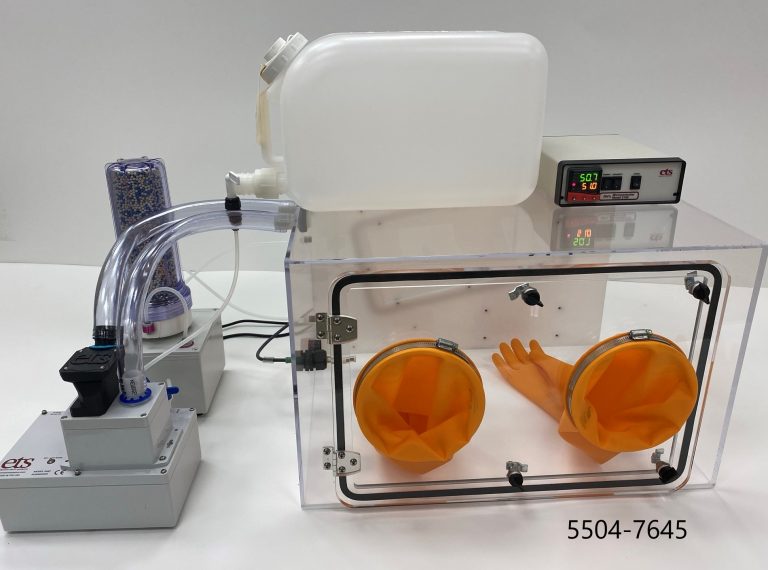

M 5504-7645 Glovebox Package, 115 Volt -
No Temperature Control; Humidity (10% to 95% RH)

The M 5504-7645 Glovebox Package (115V) includes our best compact chamber with 6" glove ports and full humidity control with a range from 10% to 95+% RH.

  • Glovebox
    • 6" Glove Ports on Front Door
    • Standard one-piece gloves, Latex 24"
  • Controller, Humidity
    • M 5100-240 - Humidity Control PID Controller
  • Humidity Range:  10% to 95+% RH
    • M 5482 - Humidification System
    • M 5461-115V - Desiccant/Pump Dehumidification System
  • Temperature Range:  Ambient (Not controlled)

Contact Us

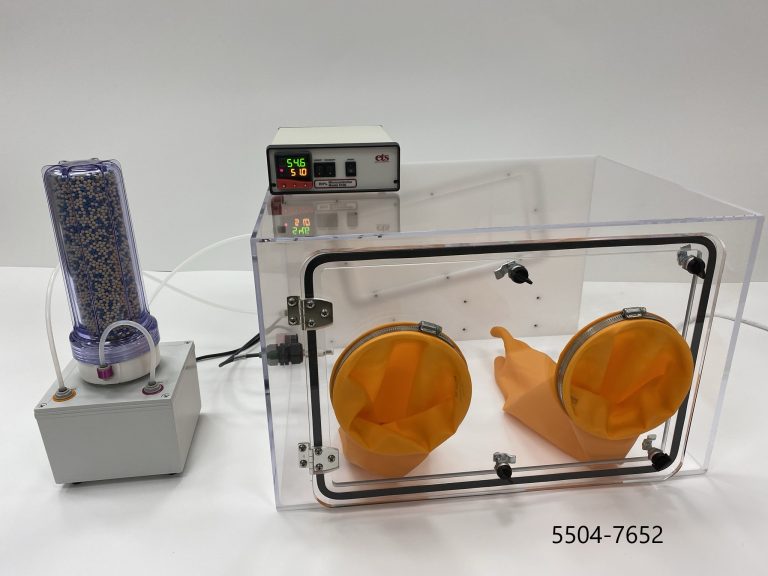

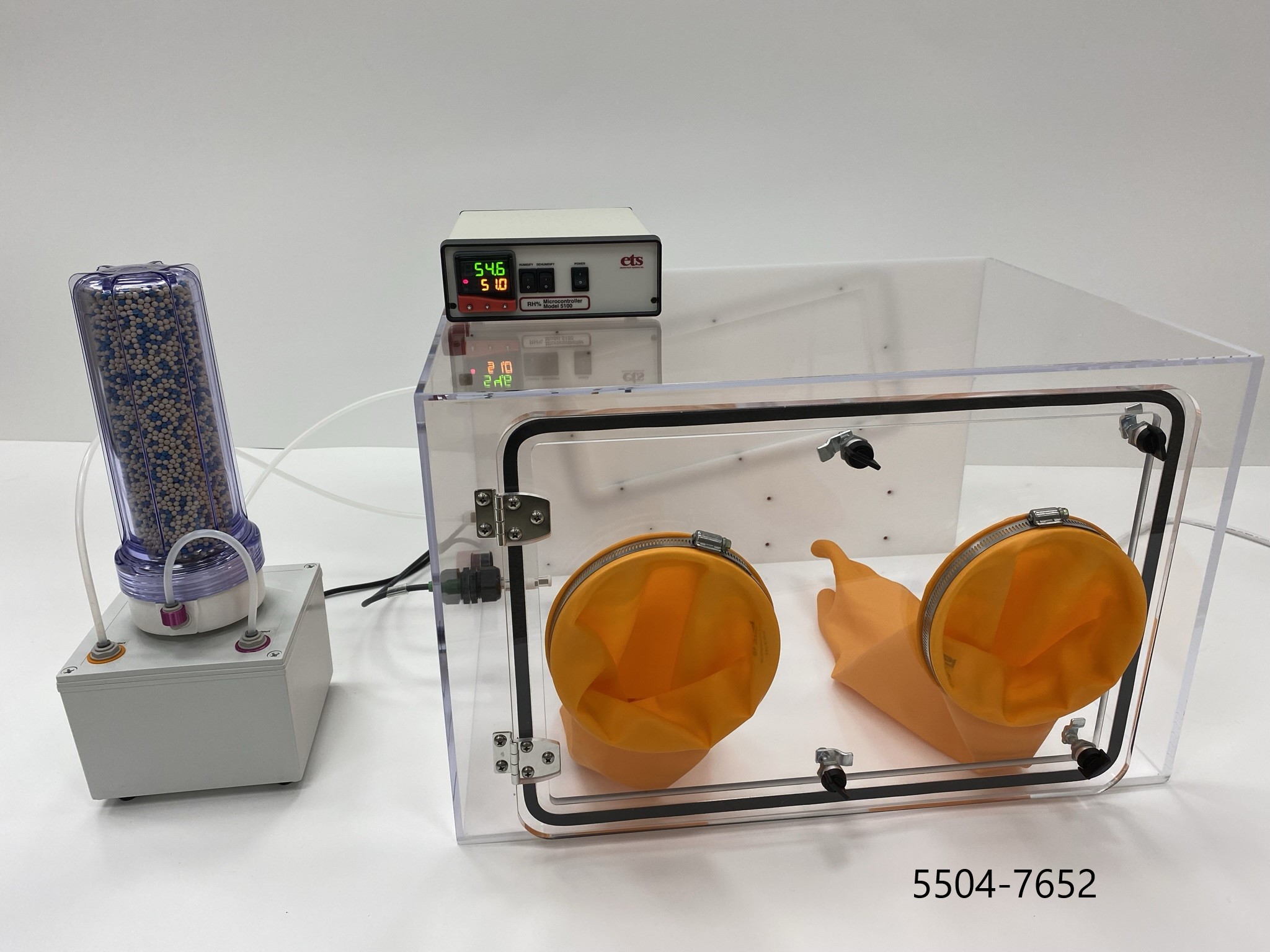

M 5504-7652 Glovebox Package, 115 Volt -
No Temperature Control; Low Humidity (10% RH to Ambient)

The M 5504-7652 Glovebox Package (115V) includes our best compact chamber with 6" glove ports and a focus on dehumidification only. The humidity can be lowered from ambient down to 10% RH for low humidity testing and applications.

  • Glovebox
    • 6" Glove Ports on Front Door
    • Standard one-piece gloves, Latex 24", Size #10 hands
  • Controller, Humidity
  • Humidity Range:  10% to Ambient RH
    • No Humidification System included
    • M 5461-115V - Desiccant/Pump Dehumidification System
  • Temperature Range:  Ambient (Not controlled)


Contact Us

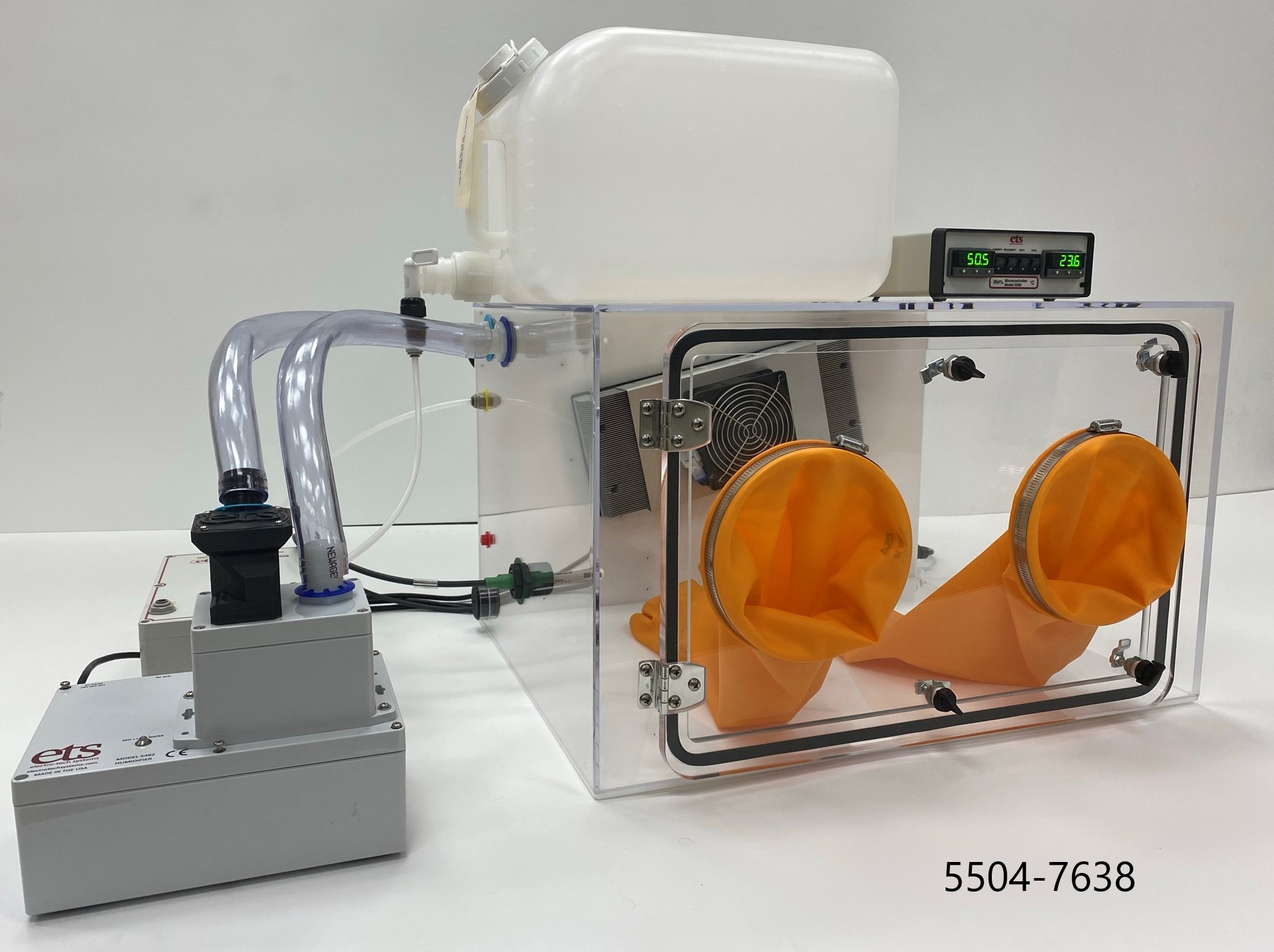

M 5504-7638 Glovebox Package, 230 Volt -
Temperature (5° to 60°C) and Humidity (Extra low 5% to 95% RH)

The M 5504-7638 (230V) Glovebox Package includes our best compact chamber with 6" glove ports and full temperature and humidity control with temperate range from 5° to 60°C and humidity range from 5% to 95+% RH.

  • Glovebox
    • 6" Glove Ports on Front Door
    • Standard one-piece gloves, Latex 24", Size #10 hands
  • Controller, Temperature and Humidity
    • M 5200-240-230 - Humidity and Temperature Dual PID Controller
  • Humidity Range:  5% to 95+% RH
    • M 5482 - Humidification System
    • M 5478-230V - Dehumidification System (Self-Regenerating) - Requires air supply (50-100 psi)
    • Overpressure Monitor/System Cutoff (90000038)
  • Temperature Range:  5° to 60°C  (40° to 140°F)
    • M 5476-250 -  250 Watt Thermoelectric Heating/Cooling System

Contact Us
M 5504-7621 Glovebox Package, 230 Volt -
Temperature (10° to 55°C) and Humidity (10% to 95%)

The M 5504-7621 Glovebox Package (230V) includes our best compact chamber with 6" glove ports and full temperature and humidity control with temperature range from 5° to 60°C and humidity range from 10% to 95+% RH.

  • Glovebox
    • 6" Glove Ports on Front Door
    • Standard one-piece gloves, Latex 24", Size #10 hands
  • Controller, Temperature and Humidity
    • M 5200-240-230 - Humidity and Temperature Dual PID Controller
  • Humidity Range:  10% to 95+% RH
    • M 5482 - Humidification System
    • M 5461-230V - Desiccant/Pump Dehumidification System
  • Temperature Range:  50° to 130°F (10° to 55°C)
    • M 5475-200 - 200 Watt Thermoelectric Heating/Cooling System

Contact Us

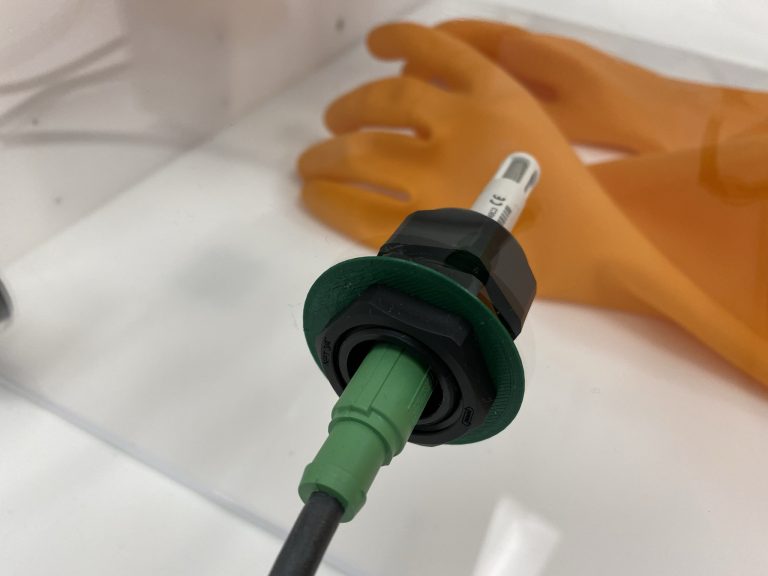

M 5504 Series Glovebox - Temperature and Humidity Sensor installed in Color Coded Fittingty Sensor (with Color Coded Connection)

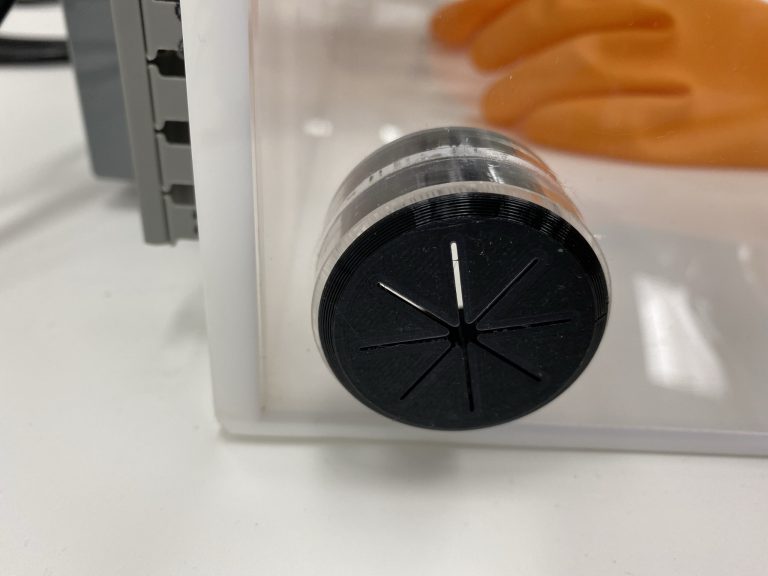

M 5504 Series Glovebox - Cable Pass-thru Port

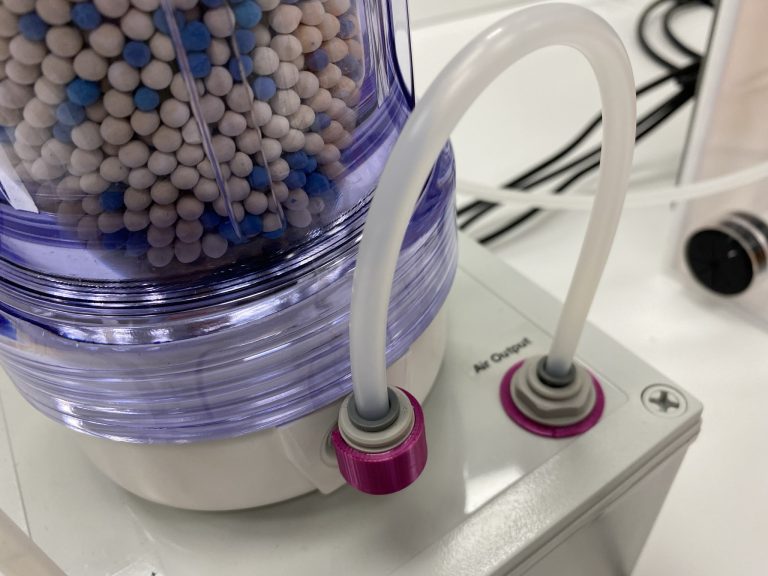

M 5461 Desiccant Dehumidification System - User-friendly Color Coded Connections
M 5504 Series Glovebox - Temperature and Humidity Sensor installed in Color Coded Fittingty Sensor (with Color Coded Connection)
M 5504 Series Glovebox - Cable Pass-thru Port
M 5461 Desiccant Dehumidification System - User-friendly Color Coded Connections
