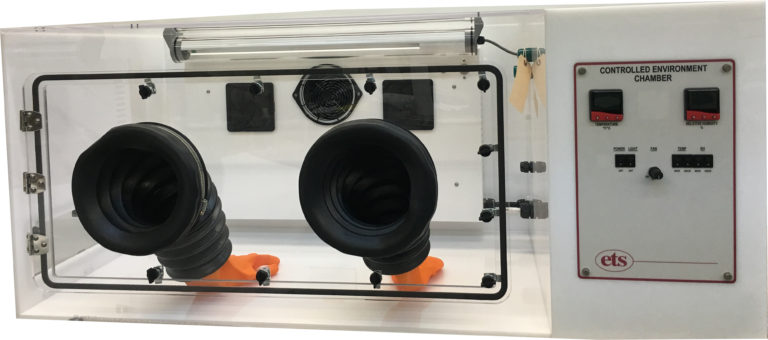

Large Glove Box

Model 5532/5518 Integrated Environmental Control

Overview:

The Model 5532/5518 is designed to accommodate equipment and material requiring a precise, stable environment, excellent visibility, and a large internal work area (9.4 cu ft., 266 L). The chamber is fabricated using clear and white acrylic construction, featuring built-in controls with state-of-art operating systems. Typical uses include EPA filter weighing, testing, storage, fabrication, and conditioning for consumer product development, biomedical, pharmaceutical, automotive, electronic, electrostatic, military, food product analysis, university research and other applications. All versions include humidification, dehumidification, heating and cooling systems, fluorescent lighting, GFIC AC power outlet (U.S. only). The systems can be configured to maintain humidity from (5% to 95% RH) and temperature from (-31ºF to 122ºF, or -35ºC to 50ºC) when the unit is placed in an ambient environment location.

Features:
  • Dimensions: 52” x 22” x 25.25”
  • Microprocessor PID control
  • Multiple Ramp/Soak cycles
  • CalGraphix software for environment tracking & control
  • Two Doors with ½-turn latches: Front Door: 32″x14″ (81×36 cm), Side Door: 14″x4″ (36×10 cm)
  • 8″ Ports with gloves
  • Integrated Internal lighting
  • 3/8″ clear & white acrylic PS30 construction
  • Desiccant/pump dehumidification & ultrasonic humidity systems
  • Standard 1.5″ dia. cable pass-through, hose barbs & compression fittings
  • Custom configurations available

Exclusive to Model 5532:

  • Multiple Ramp/Soak cycles and CalGraphix software for environment tracking & control
  • Internally integrated industrial, continuous water feed ultrasonic humidity system
  • Higher capacity desiccant/pump dehumidification system

Product Details

5532-1222022222

Large Glove Box with Fully Adjustable Humidity and Full Temperature Control (LN2) Includes: Internally integrated versions of the 5200-441-431 controller, 5466 liquid nitrogen cryogenic cooling system, 5474 heating system, 5471 2.5 lb desiccant/pump dehumidification system and upgraded internal 5462 humidifier, 115v

  • Humidity Range: 5% to 95% RH
  • Temperature Range: -31ºF to 122ºF (-35ºC to 50ºC)

5532-1222022212

Large Glove Box with Fully Adjustable Humidity and Full Temperature Control (CO2) Includes: Internally integrated versions of the 5200-441-431 controller, 5463 liquid CO2 cooling system, 5474 heating system, 5471 2.5 lb desiccant/pump dehumidification system and upgraded internal 5462 humidifier, 115v

  • Humidity Range: 5% to 95% RH
  • Temperature Range: -22ºF to 122ºF (-30ºC to 50ºC)

5532-1222022242

Large Glove Box with Fully Adjustable Humidity and Full Temperature Control Includes: Internally integrated versions of the 5200-441-431 controller, 5473 thermoelectric cooling system, 5474 heating system, 5471 2.5 lb desiccant/pump dehumidification system and upgraded internal 5462 humidifier, 115v

  • Humidity Range: 5% to 95% RH
  • Temperature Range: 64ºF to 122ºF (18ºC to 50ºC)

5518-1221001112

Large Glove Box with Fully Adjustable Humidity and Full Temperature Control Includes: Internally integrated versions of the 5200-240-230 controller, 5463 liquid CO2 cooling system, 5474 heating system, 5461 desiccant/pump dehumidification system and external 5462 humidifier, 115v

  • Humidity Range: 10% to 95% RH
  • Temperature Range: -22ºF to 122ºF (-30ºC to 50ºC)
