5506 Midsize Glove Box

Model 5506 Acrylic Benchtop Chamber

Overview:

The 5506 Series is a multi-purpose 9 cu. ft. (225 L) acrylic benchtop chamber designed for both laboratory and production applications. Users can select from a wide range of ETS controllers and operating systems to meet their exact performance criteria. The 5506 can be used for conditioning, testing, storage and fabrication in electronic, electrostatic, biomedical, pharmaceutical, university research, R&D and many other applications. The chamber is large enough to accommodate equipment, fixtures, samples, assemblies and other items while fitting onto a standard workbench. Uses can vary from a basic uncontrolled box to full range precision humidity and temperature control. ClearView Acrylic construction provides excellent internal visibility. Accessories may include PID and On/Off Controllers along with humidification, dehumidification, heating and cooling systems.

Features:
  • 9 cu. ft. (225 L) work space

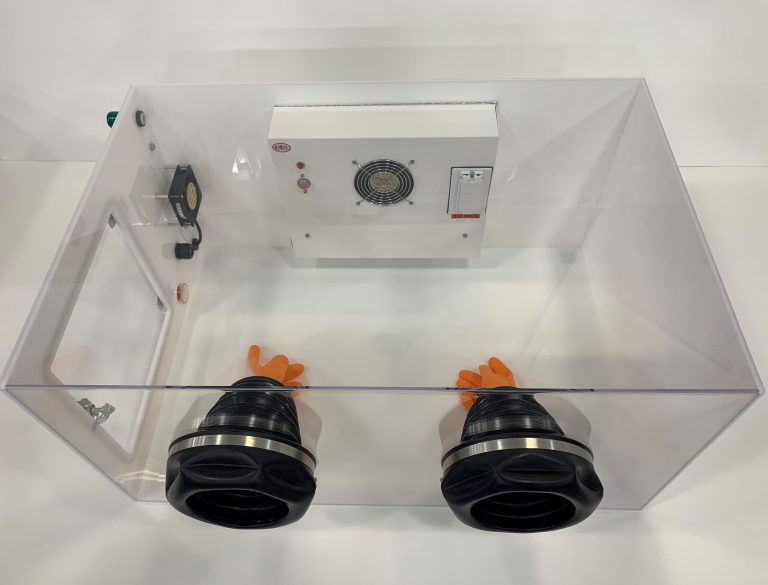

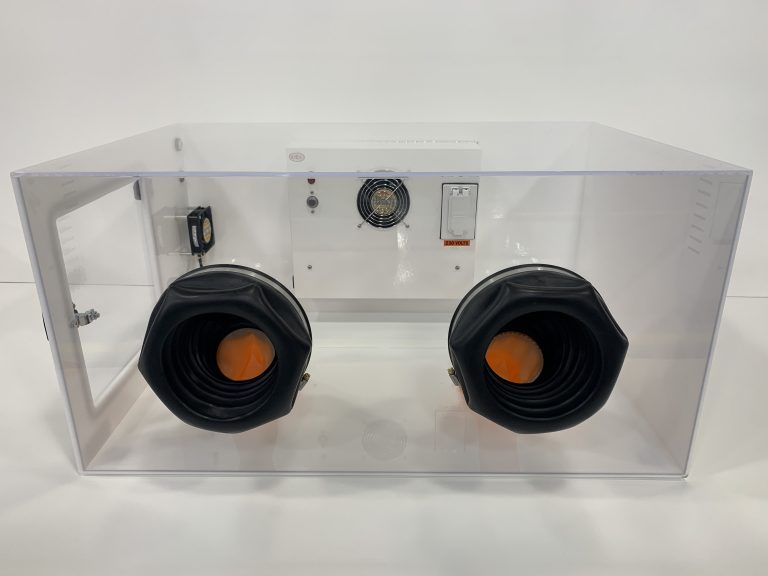

  • Standard 8″ ports with gloves

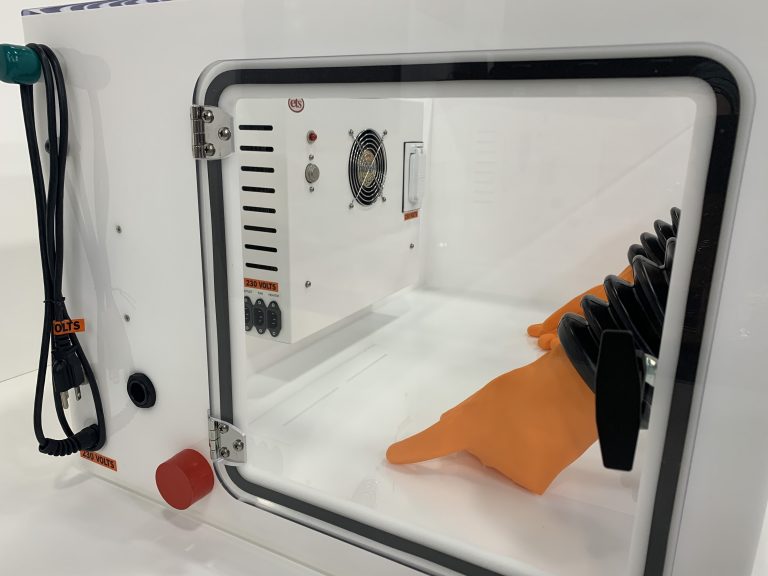

  • Door with 12” x 12” access opening
  • 32 cfm internal circulation fan
  • Clear & white acrylic construction
  • PS30 welded seams
  • Antechamber option

Product Details

5506-1221001141

Midsize Glove Box with Full Humidity Control and Full Temperature Control

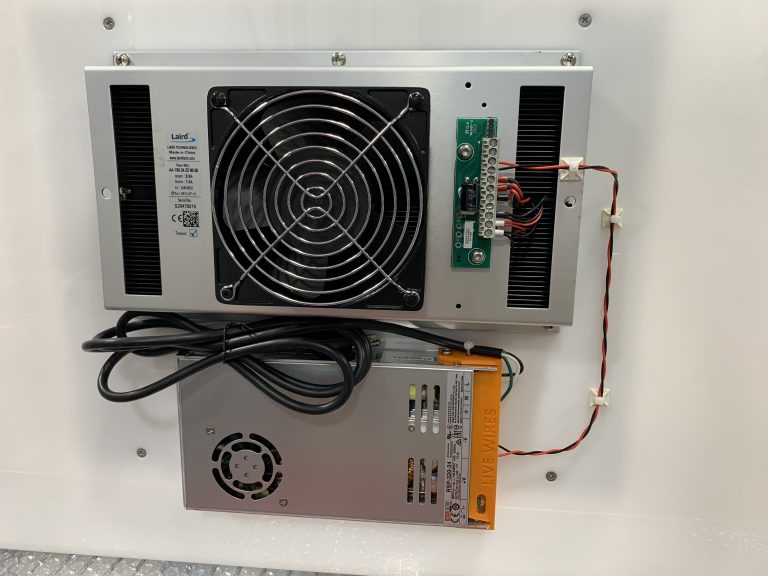

Includes: 5200-240-230 controller, 5461 desiccant/pump dehumidification system and 5462 humidifier, 5473 thermoelectric cooling system and 5474 heating system, 115v

  • Humidity Range: 10% RH to 95+% RH
  • Temperature Range: 60° to 122°F (15 to 50°C)

5506-1221001101

Midsize Glove Box with Full Humidity Control and Elevated Temperature Control
Includes: 5200-240-230 controller, 5461 desiccant/pump dehumidification and 5462 humidifier, 5474 heating system, 115v

  • Humidity Range: 10% RH to 95+% RH
  • Temperature Range: Ambient to 122°F (50°C)

5506-1228001100

Midsize Glove Box with with Full Humidity Control and Temperature Monitoring
Includes: 5200-240-030 Controller, 5461 desiccant/pump dehumidification system and 5462 humidifier, 115V

  • Humidity: 10% RH to 95+% RH
  • Temperature: Ambient (not controlled); Monitored readout provided

5506-1224001000

Midsize Glove Box with Adjustable Dehumidification
Includes: 5112 controller and 5461 desiccant/pump dehumidification system, 115V

  • Humidity: Ambient down to 10%
  • Temperature: Ambient (uncontrolled)

5506-1223004000

Midsize Chamber with Dehumidification fixed at 5% RH
Includes: 5311 dry gas valve with preset sensor

  • Humidity: Fixed at 5% RH
  • Temperature: Ambient (uncontrolled)

5506-1220000000

Midsize Glove Box
Includes: Does not include any controls or operating systems

  • Humidity Range:  Ambient (uncontrolled)
  • Temperature Range:  Ambient (uncontrolled)
