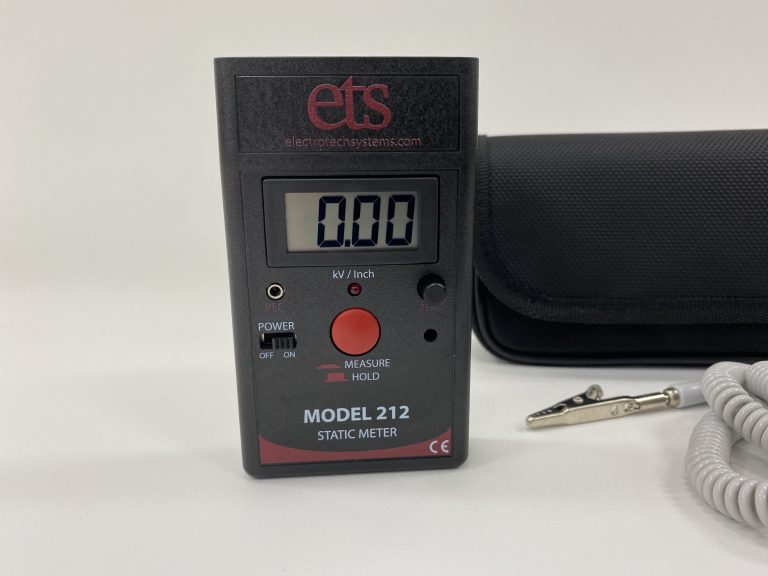

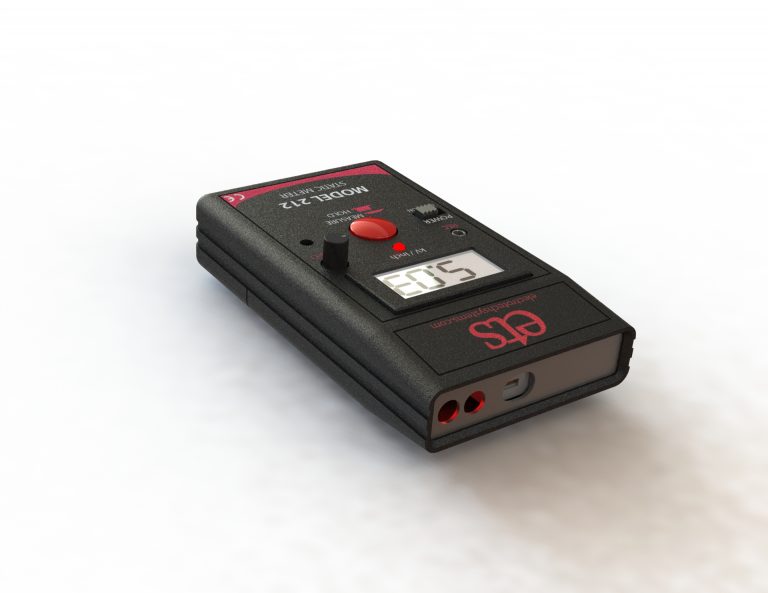

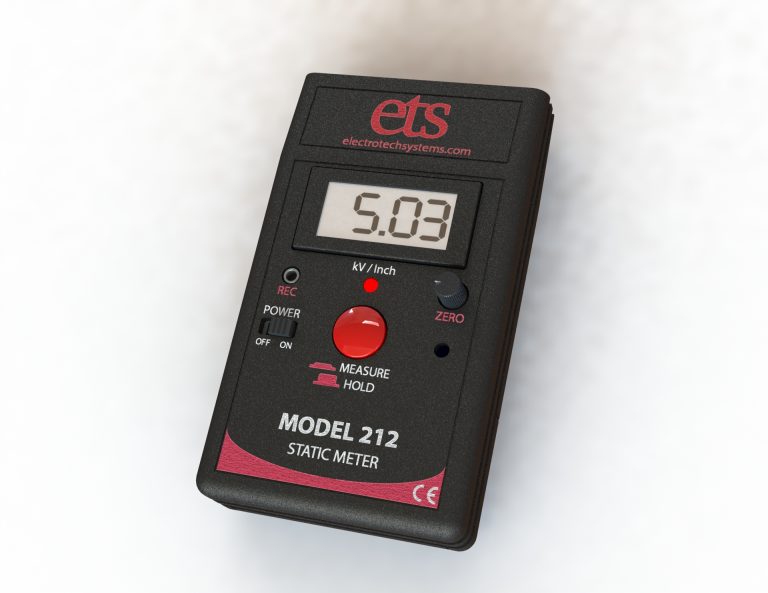

M 212 Digital Static Meter


Static Meter – The M 212 Digital Static Meter is a precision meter with chopper-stabilized sensor providing long-term, accurate measurements in both normal and ionized environments. The 3½-digit LCD readout provides 10 Volt resolution. Other features include polarity indication, low battery warning and a recorder output jack.

The measurement range is from 0 to ±20 kV at a Meter-to-object distance of 1 inch. The Meter utilizes LED ranging lights for increased measurement accuracy. A locking MEASURE/HOLD switch enables the user to take a measurement and then hold the reading. A user adjustable zero control increases the instrument”s versatility.

The M 212 is housed in a conductive case and incorporates a ¼” male snap that accepts the included 10-foot cord with removable alligator clip. A vinyl carrying case are included. An optional molded cord assembly with flying leads is available for connecting the meter to a chart recorder, oscilloscope or external display having a full-scale sensitivity of at least 200mV. The M 212 is powered by a standard 9-volt battery.

  • Chopper stabilized Sensor
  • Operates in ionized environments
  • ±20 kV Range @ 1″

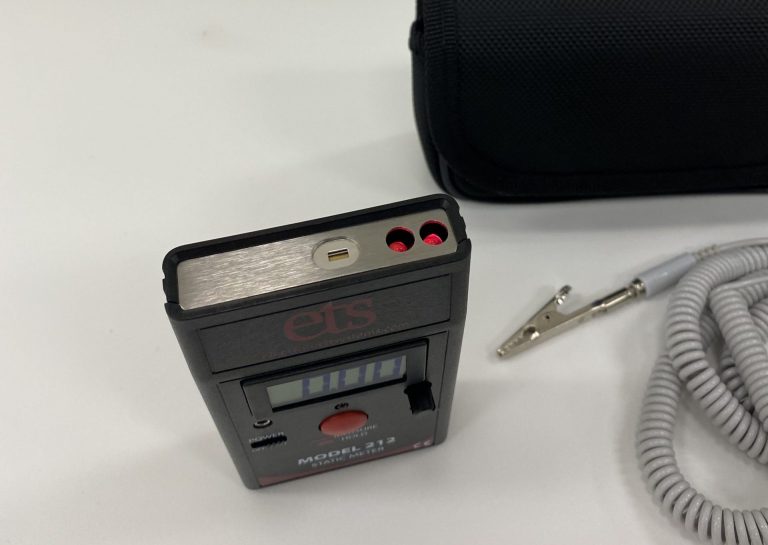

  • Distance ranging LED lights
  • Static Locator with MEASURE / HOLD function
  • Recorder output jack
  • 10 volt resolution
  • 3-1/2 digit LCD display
  • Charge Plate Detector options

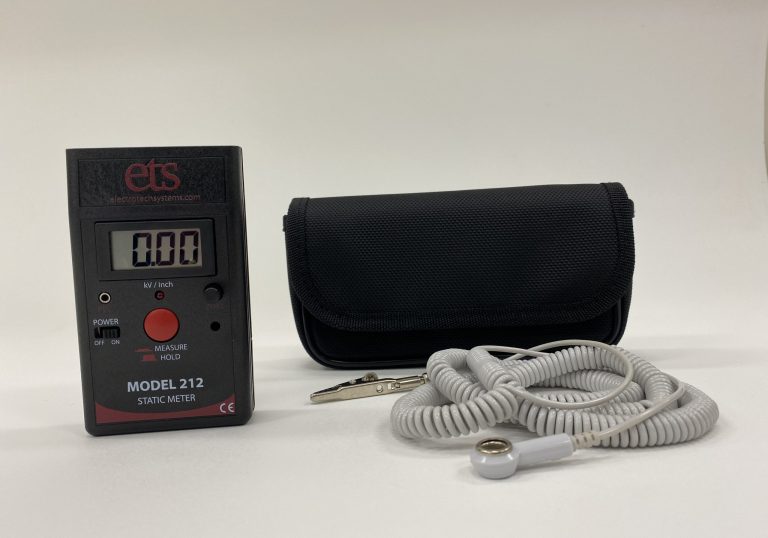

  • M 212 Static Meter
  • Ground Cord, 10′ Coiled
  • Alligator Clip
  • Soft Sided Case
