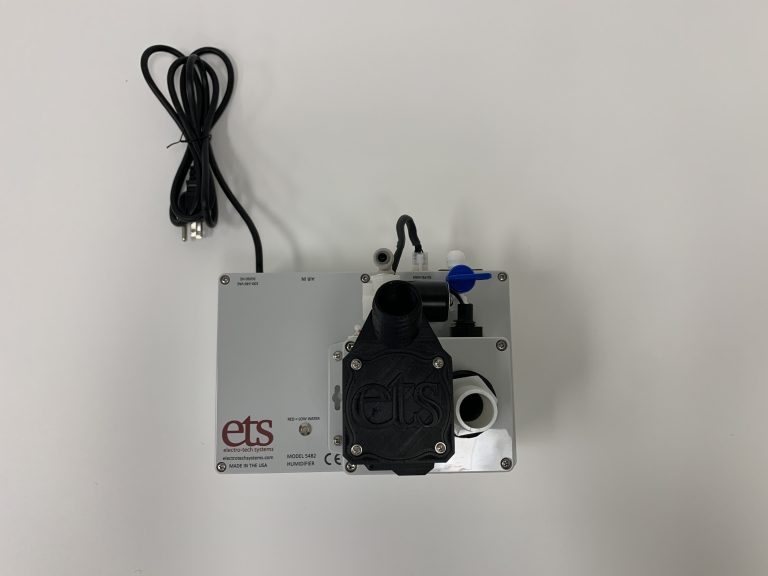

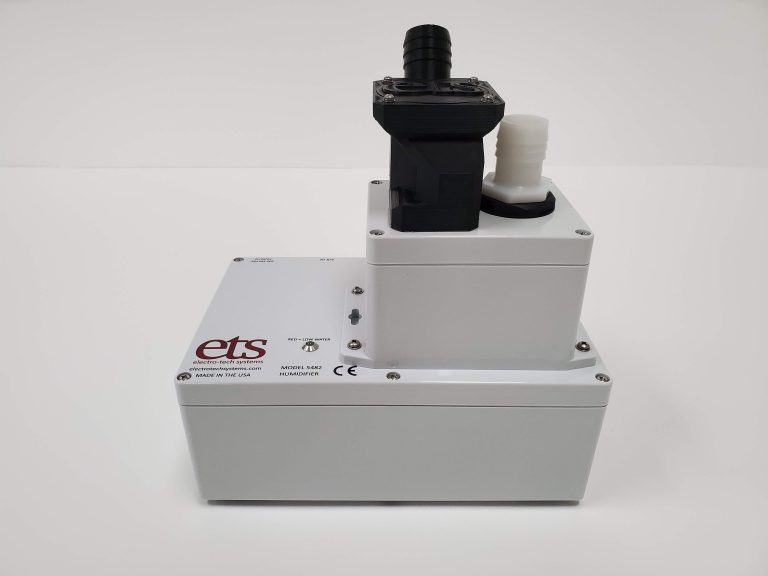

Model 5482 Humidification System

Overview:

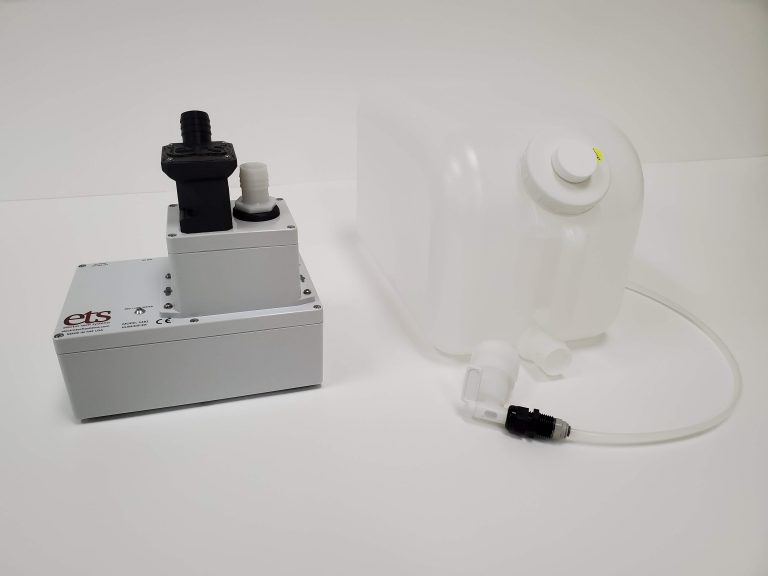

Electro-Tech Systems’ Model 5482 Humidifier is built for industrial and laboratory applications.  The 5482 is a high-performance humidifier with dual-rate operation, automatically choosing fast ramping when required, or lower rate operation to precisely maintain a target condition.  The unit creates a 5-micron droplet size which avoids moisture deposition on sensitive items.  The Model 5482 Glove Box Humidification System can be utilized in an open-loop or closed-loop configuration and functions with any ETS controller.   A 5-gallon water tank is included.  Deionized water is recommended.

Features:
  • Dual-rate performance: high rate for faster ramping and lower rate for finer regulation.
  • Fine 5-micron Droplets reduce moisture deposition on sensitive items.
  • Design minimizes noise and vibration that could impact sensitive measurements.
  • Built-in support for open loop or closed loop operation.
  • Universal Voltage Supply 100VAC to 240VAC makes it easy use anywhere.
  • Designed for use with any ETS 5000 Series Controller.
  • Standard 1 inch hose barb connection can be utilized with any ETS chamber.
